Triplex 5/8" (10B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C45
10B-3 38T Steel Sprocket (5TR38)
10B-3 38T Steel Sprocket (5TR38)

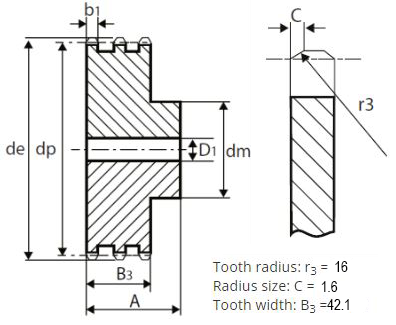

| Part No. | 7824-522 |
| Code | 5TR38 |
| No. teeth | 38 |
| Outside dia. de | 199.2 |
| Pitch dia. dp | 192.24 |
| Boss dia. | 120 |
| Bore D1* | 25 |
| Overall Width A | 60 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
