British Standard sprockets with integral bearings (budget) for use as an idler.

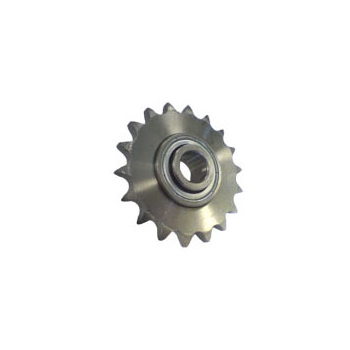

10B 17T Idler Sprocket Budget Bearing (I5SR17B)
10B 17T Idler Sprocket Budget Bearing (I5SR17B)
| Part No. | 7830-110 |
| Code | I5SR17B |
| No. teeth | 17 |
| Pitch | 5/8? x 3/8? |
| de | 93 |
| dp | 86.39 |
| A | 9.1 |
| D1* | 16 |
| F | 40 |
| B | 12 |
| H | 18.3 |
| Bearing | Budget |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
