British Standard sprockets with integral bearings (INA) for use as an idler.

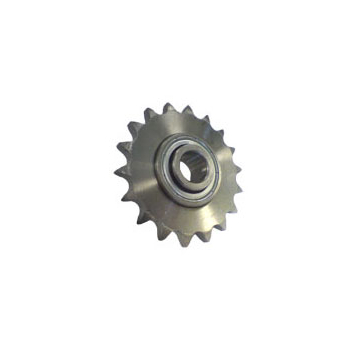

10B 15T Idler Sprocket INA Bearing (I5SR15I)
10B 15T Idler Sprocket INA Bearing (I5SR15I)
Part No. | 7830-208 |
Code | I5SR15I |
No. teeth | 15 |
Pitch | 5/8? x 3/8? |
de | 83 |
dp | 76.36 |
A | 9.1 |
D1* | 16 |
F | 40 |
B | 12 |
H | 18.3 |
Bearing | INA |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
