En8 zinc plated steel unsplit Shaft Collars in Metric Bore. Type CABU supplied with setscrew(s).
Zinc Collar 12x22x12mm
Zinc Collar 12x22x12mm

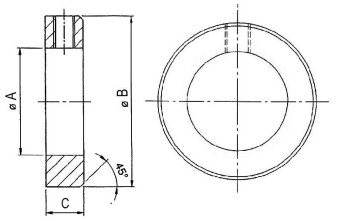

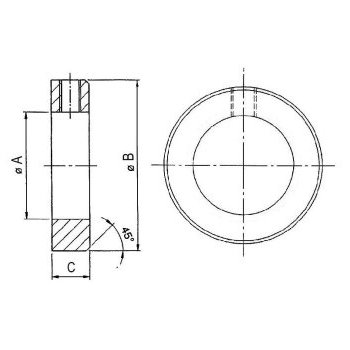

| Part No. | 4609-071 |
| Code | WHCABU12Z |
| Bore A | 12 |
| Diameter B | 22 |
| Width C | 12 |
| Setscrew D | M6 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
