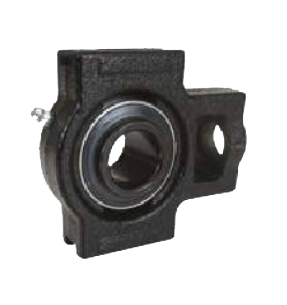

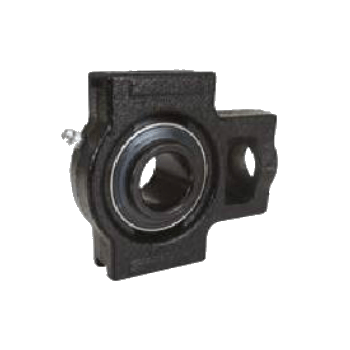

Take up cast iron bearing housing complete with steel bearing insert for mounting inside a take-up frame
UCT 202 15mm, Take Up Block Bearing (UCT/202)
UCT 202 15mm, Take Up Block Bearing (UCT/202)
| Part Number | 7910-601 |
| Code | UCT/202 |
| UCT | 202 |
| Bore size (mm) | 15 |
| C1 | 16 |
| T2 | 12 |
| Q2 | 51 |
| C2 | 32 |
| C | 19 |
| T3 | 51 |
| L1 | 12 |
| Q1 | 76 |
| Q | 89 |
| T | 94 |
| L2 | 21 |
| L | 32 |
| q | 33 |
| T1 | 61 |
| S | 31 |
| F | 12.7 |
| Bearing no. | UC202 |
| Housing no. | T204 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
