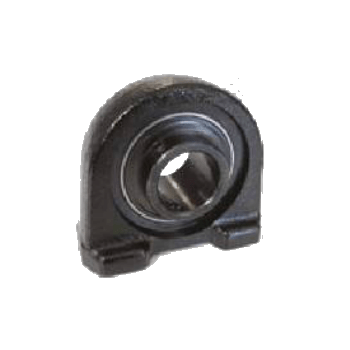

2 Bolt short base pillow block cast iron bearing housing complete with steel bearing insert
UCPA 209 45mm, Compact Pillow Block (UCPA/209)
UCPA 209 45mm, Compact Pillow Block (UCPA/209)
| Part Number | 7910-508 |
| Code | UCPA/209 |
| UCPA | 209 |
| Bore (mm) | 45 |
| c | 54.2 |
| l | 120 |
| r | 90 |
| s | 54 |
| w | M14x2.0 |
| e | 13 |
| n | 108 |
| A | 49.2 |
| o | 19 |
| h | 25 |
| Bearing No. | UC209 |
| Housing No. | PA209 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
