2 Bolt short base pillow block cast iron bearing housing complete with steel bearing insert

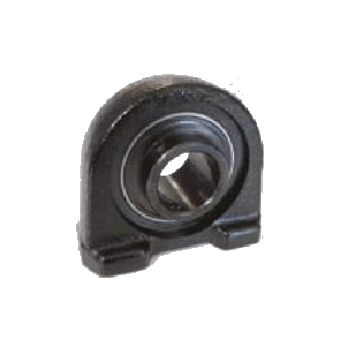

UCPA 202 15mm, Compact Pillow Block (UCPA/202)
UCPA 202 15mm, Compact Pillow Block (UCPA/202)
| Part Number | 7910-501 |
| Code | UCPA/202 |
| UCPA | 202 |
| Bore (mm) | 15 |
| c | 30.2 |
| l | 76 |
| r | 52 |
| s | 38 |
| w | M10x1.5 |
| e | 11 |
| n | 62 |
| A | 31 |
| o | 13 |
| h | 13 |
| Bearing No. | UC202 |
| Housing No. | PA202 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
