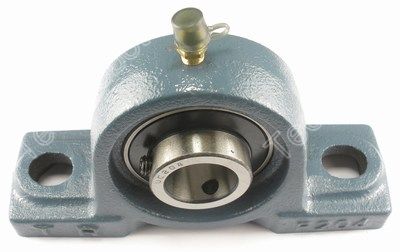

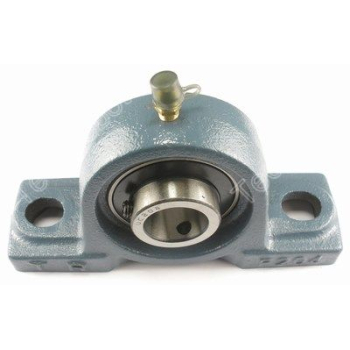

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 209 45mm, Pillow Block Bearing (UCP/209)
UCP 209 45mm, Pillow Block Bearing (UCP/209)
| Part Number | 7910-308 |
| Code | UCP/209 |
| UCP | 209 |
| Bore (mm) | 45 |
| c | 54 |
| l | 190 |
| r | 146 |
| s | 54 |
| F1 | 17 |
| F2 | 20 |
| e | 20 |
| n | 106 |
| A | 49.2 |
| o | 19 |
| Bearing No. | UC209 |
| Bolt size | M14 |
| Housing No. | P209 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
