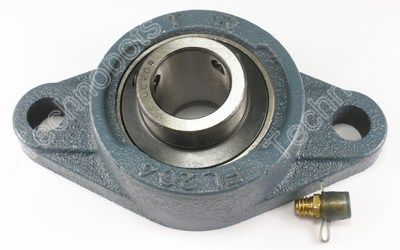

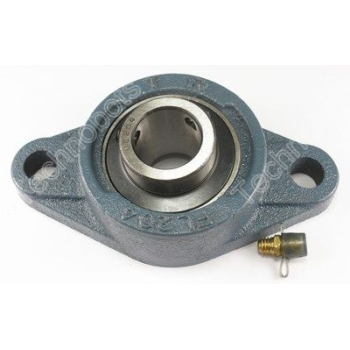

2 Bolt cast iron bearing housing complete with steel bearing insert
UCFL 216 80mm, 2-Bolt Flange Bearing (UCFL/216)
UCFL 216 80mm, 2-Bolt Flange Bearing (UCFL/216)
| Part Number | 7910-215 |
| Code | UCFL/216 |
| UCFL | 216 |
| Bore (mm) | 80 |
| l | 290 |
| r | 233 |
| v | 34 |
| e | 22 |
| t | 58 |
| F | 25 |
| s | 180 |
| m | 83.3 |
| A | 82.6 |
| o | 33.3 |
| Bearing No. | UC216 |
| Bolt size | M22 |
| Housing No. | FL216 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
