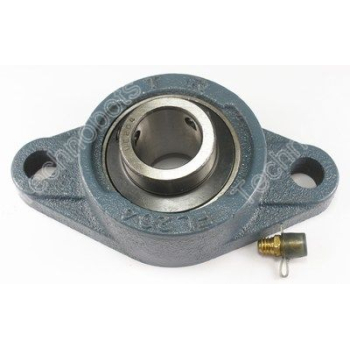

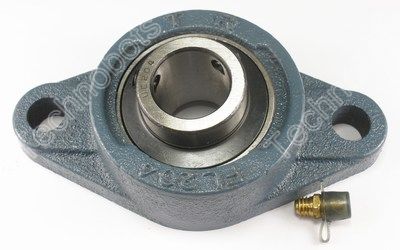

2 Bolt cast iron bearing housing complete with steel bearing insert
UCFL 214 70mm, 2-Bolt Flange Bearing (UCFL/214)
UCFL 214 70mm, 2-Bolt Flange Bearing (UCFL/214)
| Part Number | 7910-213 |
| Code | UCFL/214 |
| UCFL | 214 |
| Bore (mm) | 70 |
| l | 265 |
| r | 216 |
| v | 31 |
| e | 22 |
| t | 54 |
| F | 23 |
| s | 160 |
| m | 75.4 |
| A | 74.6 |
| o | 30.2 |
| Bearing No. | UC214 |
| Bolt size | M20 |
| Housing No. | FL214 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
