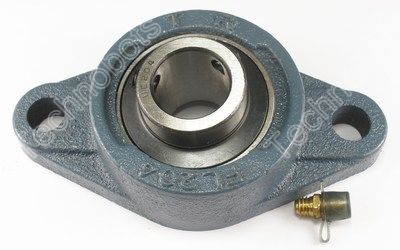

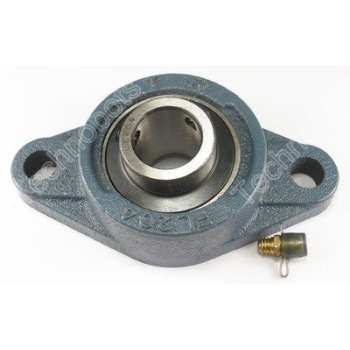

2 Bolt cast iron bearing housing complete with steel bearing insert
UCFL 209 45mm, 2-Bolt Flange Bearing (UCFL/209)
UCFL 209 45mm, 2-Bolt Flange Bearing (UCFL/209)
| Part Number | 7910-208 |
| Code | UCFL/209 |
| UCFL | 209 |
| Bore (mm) | 45 |
| l | 188 |
| r | 148 |
| v | 22 |
| e | 16 |
| t | 38 |
| F | 19 |
| s | 108 |
| m | 52.2 |
| A | 49.2 |
| o | 19 |
| Bearing No. | UC209 |
| Bolt size | M16 |
| Housing No. | FL209 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
