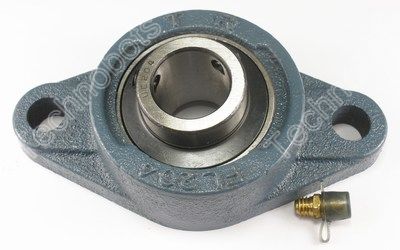

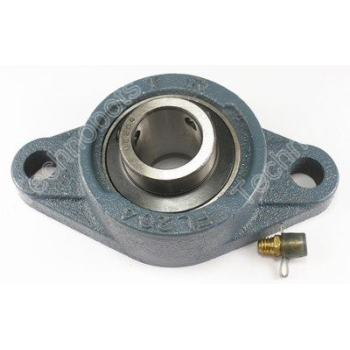

2 Bolt cast iron bearing housing complete with steel bearing insert
UCFL 206 30mm, 2-Bolt Flange Bearing (UCFL/206)
UCFL 206 30mm, 2-Bolt Flange Bearing (UCFL/206)
| Part Number | 7910-205 |
| Code | UCFL/206 |
| UCFL | 206 |
| Bore (mm) | 30 |
| l | 148 |
| r | 117 |
| v | 18 |
| e | 13 |
| t | 31 |
| F | 16 |
| s | 80 |
| m | 40.2 |
| A | 38.1 |
| o | 15.9 |
| Bearing No. | UC206 |
| Bolt size | M14 |
| Housing No. | FL206 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
