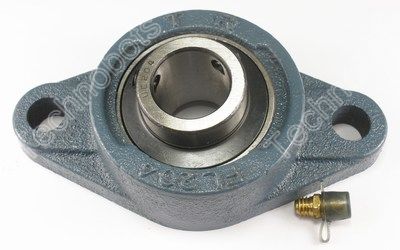

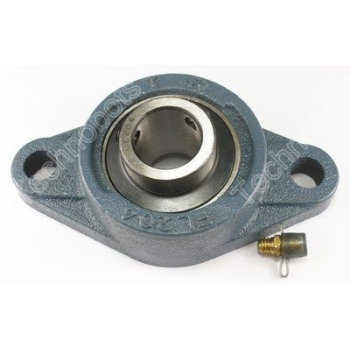

2 Bolt cast iron bearing housing complete with steel bearing insert
UCFL 204 20mm, 2-Bolt Flange Bearing (UCFL/204)
UCFL 204 20mm, 2-Bolt Flange Bearing (UCFL/204)
| Part Number | 7910-203 |
| Code | UCFL/204 |
| UCFL | 204 |
| Bore (mm) | 20 |
| l | 113 |
| r | 90 |
| v | 15 |
| e | 11 |
| t | 25.5 |
| F | 12 |
| s | 60 |
| m | 33.3 |
| A | 31 |
| o | 12.7 |
| Bearing No. | UC204 |
| Bolt size | M10 |
| Housing No. | FL204 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
