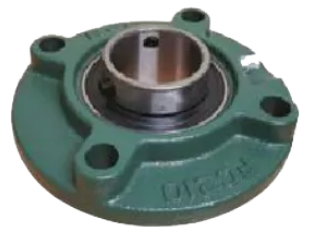

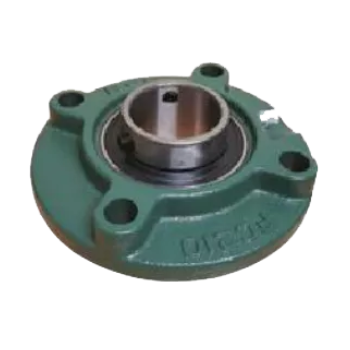

Round cast iron bearing housing complete with steel bearing insert
UCFC 202 15mm, 4-Bolt Round Flange Bearing (UCFC/202)
UCFC 202 15mm, 4-Bolt Round Flange Bearing (UCFC/202)
| Part Number | 7910-101 |
| Code | UCFC/202 |
| UCFC | 202 |
| Bore (mm) | 15 |
| l | 100 |
| z | 78 |
| r | 55.1 |
| v | 10 |
| U | 12 |
| y | 5 |
| w | 7 |
| e | 20.5 |
| h | 62 |
| m | 28.3 |
| A | 31 |
| o | 12.7 |
| Bearing No. | UC202 |
| Bolt size | M10 |
| Housing No. | FC202 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
