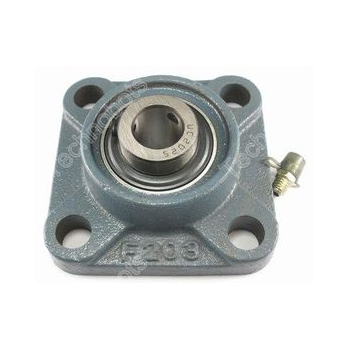

Cast iron square flange bearing housing complete with steel bearing insert
UCF 213 65mm, 4-Bolt Square Flange Bearing (UCF/213)
UCF 213 65mm, 4-Bolt Square Flange Bearing (UCF/213)
| Part Number | 7910-012 |
| Code | UCF/213 |
| UCF | 213 |
| Bore (mm) | 65 |
| l | 187 |
| r | 149 |
| v | 30 |
| e | 22 |
| t | 50 |
| F | 19 |
| m | 69.7 |
| A | 65.1 |
| w | 25.4 |
| Bearing No. | UC213 |
| Bolt size | M16 |
| Housing No. | F213 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
