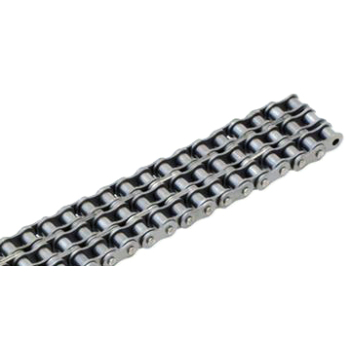

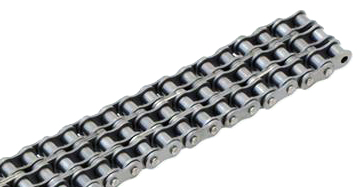

Triplex Chain 10B 5/8" / sold per metre
Specification:

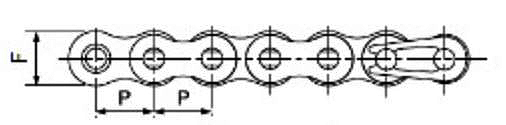

Pitch P: 15.875mm

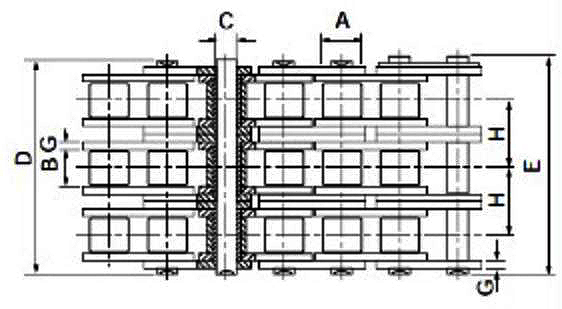

Roller diameter A: 10.16mm
Width between inner plates B: 9.65mm
Pin diameter C: 5.08mm
Pin Length D: 52.7mm
Pin Length E: 54.1mm
Inner plate height F: 14.7mm
Minimum tensile strength: 66.7kN
Average tensile strength: 84.5kN
