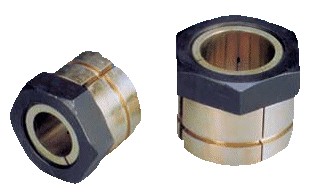

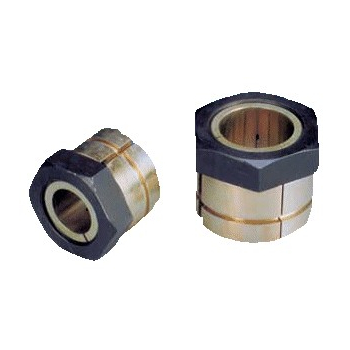

Translock® Standard Keyless Locking Bushes in Metric Series
Translock Bushes 24x45mm (TRSTD24X45)
Translock Bushes 24x45mm (TRSTD24X45)
| Part No. | 7933-208 |
| Code | TRSTD24X45 |
| Bore d (mm) | 24 |
| Outside diameter D (mm) | 45 |
| L | 47.5 |
| L1 | 21.5 |
| A1 | 38 |
| A2 | 44.5 |
| B | 11 |
| B1 | 9.5 |
| Torque (Nm) | 380 |
| Thrust (kN) | 27 |
| Hub pressure (N/cm2) | 6500 |
| Nut torque (Nm) | 170 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
