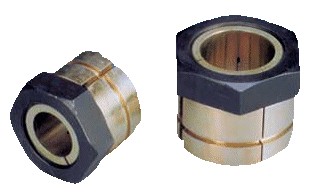

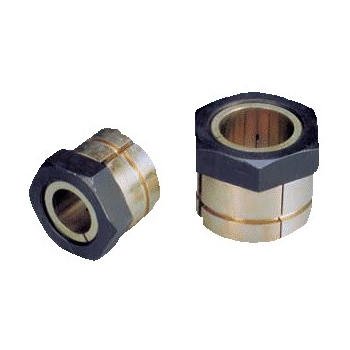

Translock® Standard Keyless Locking Bushes in Metric Series
Translock Bushes 17x38mm (TRSTD17X38)
Translock Bushes 17x38mm (TRSTD17X38)
| Part No. | 7933-203 |
| Code | TRSTD17X38 |
| Bore d (mm) | 17 |
| Outside diameter D (mm) | 38 |
| L | 38 |
| L1 | 19 |
| A1 | 32 |
| A2 | 38 |
| B | 8 |
| B1 | 8 |
| Torque (Nm) | 231 |
| Thrust (kN) | 16.4 |
| Hub pressure (N/cm2) | 7650 |
| Nut torque (Nm) | 140 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
