0.5 Mod 2 Mod Steel EN8M (226M44) or equivalent. 3 Mod 6 Mod Steel EN8 (080M40,080M46) or equivalent.. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm. 20° pressure angle. Bore tolerance H7. Single & double start, right hand
Steel Worm Gear Mod 6, Bored, 1 Start (SWB60/1R)
Steel Worm Gear Mod 6, Bored, 1 Start (SWB60/1R)

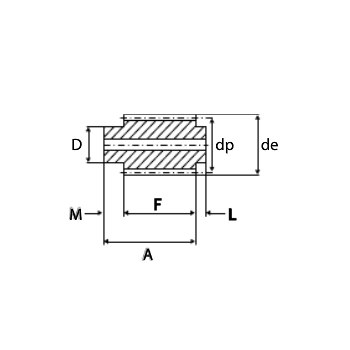

| Part No. | 7704-113 |
| Code | SWB60/1R |
| Pitch Module | 6 |
| dp | 80 |
| de | 92 |
| Shaft / Boss Ø D | 65 |
| M | 20 |
| Bore | 35 |
| F | 80 |
| L | 20 |
| A | 120 |
| Type | B |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
