0.5 Mod 2 Mod Steel EN8M (226M44) or equivalent. 3 Mod 6 Mod Steel EN8 (080M40,080M46) or equivalent.. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm. 20° pressure angle. Bore tolerance H7. Single & double start, right hand
Steel Worm Gear Mod 1, 1 Start (BSWB10/1R). Note: MUST be run only with type NBWW wormwheels
Steel Worm Gear Mod 1, 1 Start (BSWB10/1R). Note: MUST be run only with type NBWW wormwheels

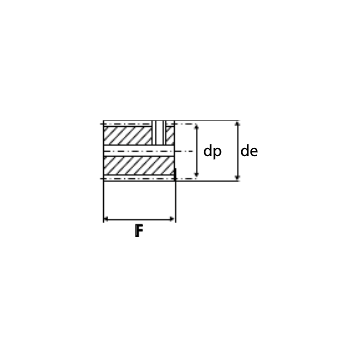

| Part No. | 7704-103 |
| Code | BSWB10/1R |
| Pitch Module | 1 |
| dp | 16 |
| de | 18 |
| Shaft / Boss Ø D | - |
| M | - |
| Bore | 6 |
| F | 32 |
| L | - |
| A | - |
| Type | D |
