Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm.. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent

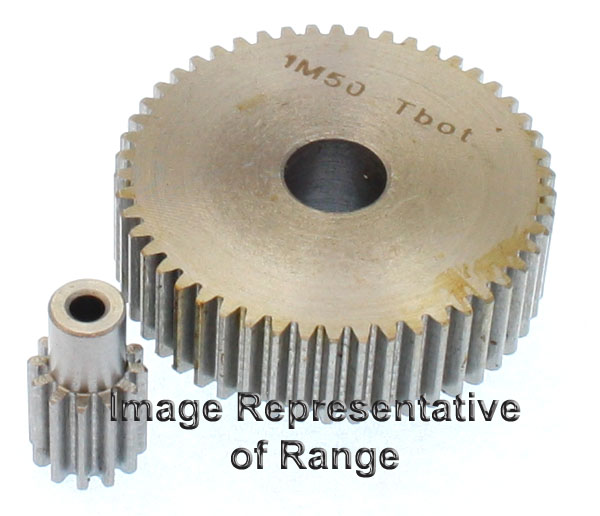

Steel Spur Gear Mod 1 127T, No Hub (SS10/127A)
Steel Spur Gear Mod 1 127T, No Hub (SS10/127A)
| Part No. | 7702-383 |
| Code | SS10/127A |
| Type | A |
| No. of Teeth | 127 |
| Pitch Ø dp | 127 |
| Bore Ø H8 | 12 |
| Hub/Boss Ø dm | |
| Outside Ø de | 129 |
| O/A Width A | |
| Face Width B | 15 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
