Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalent

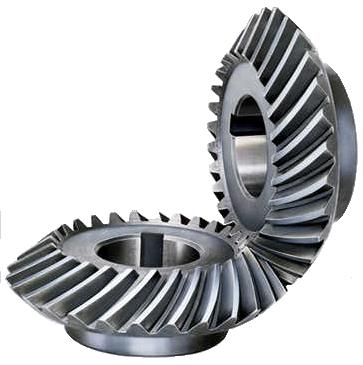

Steel Spiral Mitre Gear Mod 5.0 25T/25T (SBMSP50/25)
Steel Spiral Mitre Gear Mod 5.0 25T/25T (SBMSP50/25)
| Part No. | 7708-723 |
| Code | SBMSP50/25 |
| Pitch Module | 5 |
| No. Teeth | 25 |
| dp (mm) | 125 |
| de (mm) | 130 |
| dm (mm) | 90 |
| Bore (H8) | 20 |
| F (mm) | 26 |
| Lm (mm) | 18.5 |
| A (mm) | 47.8 |
| A+V (mm) | 90 |
| S (mm) | 6 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
