DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 Ratio
Steel Mitre Gear DP5 24T 1:1 (SBMDP5/24)
Steel Mitre Gear DP5 24T 1:1 (SBMDP5/24)

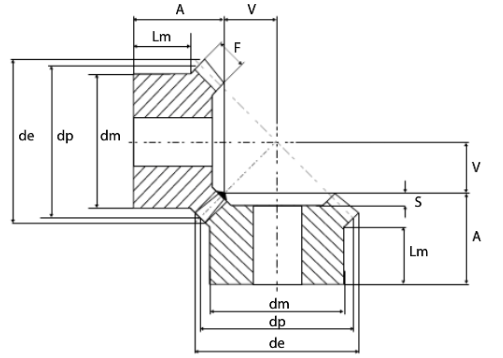

| Part No. | 7708-321 |
| Code | SBMDP5/24 |
| DP | 5 |
| No. Teeth | 24 |
| dp (in) | 4.8 |
| de (in) | 5.083 |
| dm (in) | 3.845 |
| Bore (in) | 1.25 |
| F (in) | 1.125 |
| Lm (in) | 1.123 |
| A (in) | 2.481 |
| V+A (in) | 4 |
| S (in) | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
