Standard tolerances, unless. otherwise stated ±0.010 ins. Standard: BS 436 Pt1, fig 1. Grade 8 / 9. All dimensions in inches. Steel EN8, (080M40/080M46) or equivalent

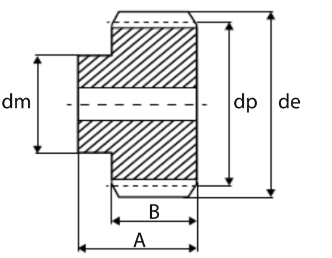

Steel 8DP 32T Spur Gear With Hub (SS8DP/32B)
Steel 8DP 32T Spur Gear With Hub (SS8DP/32B)
| Part No. | 7701-293 |
| Code | SS8DP/32B |
| No. of Teeth | 32 |
| Pitch Ø dp | 4 |
| Outside Ø de | 4.25 |
| Hub/Boss Ø dm | 2.5 |
| Bore Ø H8 | 1 |
| O/A Width A | 2.25 |
| Face Width B | 1.25 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
