SPZ 5 Groove V Pulleys taper bore for use with our taper bushes.

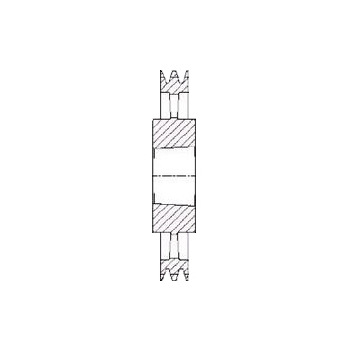

Spz800/5 V Pulley For 3535 T/L Bush (SPZ800/5)
Spz800/5 V Pulley For 3535 T/L Bush (SPZ800/5)
| Part No. | 7804-750 |
| Type | SPZ800/5 |
| Diameter P (mm) | 800 |
| Diameter O (mm) | 804 |
| Style | 4 |
| Bush | 3535 |
| Bore ø max. | 90 |
| E | |
| J | 771 |
| K | 12.5 |
| L | 89 |
| M | 12.5 |
| N | 178 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
