SPZ 4 Groove V Pulleys taper bore for use with our taper bushes.

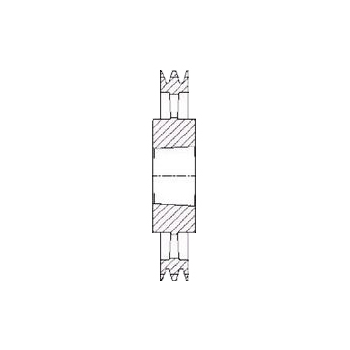

Spz800/4 V Pulley For 3030 T/L Bush (SPZ800/4)
Spz800/4 V Pulley For 3030 T/L Bush (SPZ800/4)
| Part No. | 7804-724 |
| Type | SPZ800/4 |
| Diameter P (mm) | 800 |
| Diameter O (mm) | 804 |
| Style | 4 |
| Bush | 3030 |
| Bore ø max. | 75 |
| E | |
| J | 771 |
| K | 12 |
| L | 76 |
| M | 12 |
| N | 146 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
