SPZ 2 Groove V Pulleys taper bore for use with our taper bushes.
Spz80/2 V Pulley For 1210 T/L Bush (SPZ80/2)
Spz80/2 V Pulley For 1210 T/L Bush (SPZ80/2)
| Part No. | 7804-661 |
| Type | SPZ80/2 |
| Diameter P (mm) | 80 |
| Diameter O (mm) | 84 |

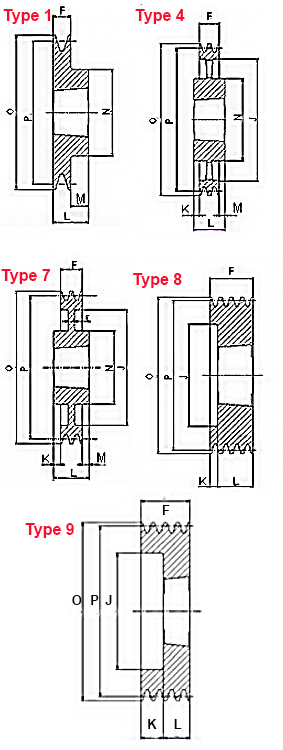

| Style | 8 |
| Bush | 1210 |
| Bore ø max. | 32 |
| E | |
| J | 51 |
| K | 3 |
| L | 25 |
| M | |
| N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
