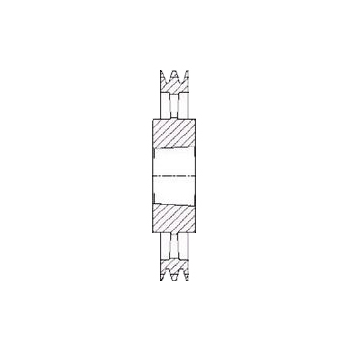

SPZ 4 Groove V Pulleys taper bore for use with our taper bushes.
Spz630/4 V Pulley For 3030 T/L Bush (SPZ630/4)
Spz630/4 V Pulley For 3030 T/L Bush (SPZ630/4)
Part No. | 7804-722 |
Type | SPZ630/4 |
Diameter P (mm) | 630 |
Diameter O (mm) | 634 |
Style | 4 |
Bush | 3030 |
Bore ø max. | 75 |
E | |
J | 601 |
K | 12 |
L | 76 |
M | 12 |
N | 146 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
