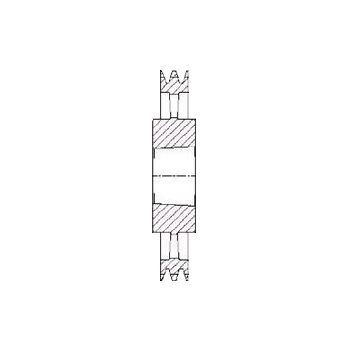

SPZ 2 Groove V Pulleys taper bore for use with our taper bushes.
Spz400/2 V Pulley For 2517 T/L Bush (SPZ400/2)
Spz400/2 V Pulley For 2517 T/L Bush (SPZ400/2)
Part No. | 7804-650 |
Type | SPZ400/2 |
Diameter P (mm) | 400 |
Diameter O (mm) | 404 |
Style | 4 |
Bush | 2517 |
Bore ø max. | 60 |
E | |
J | 371 |
K | 85 |
L | 45 |
M | 85 |
N | 154 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
