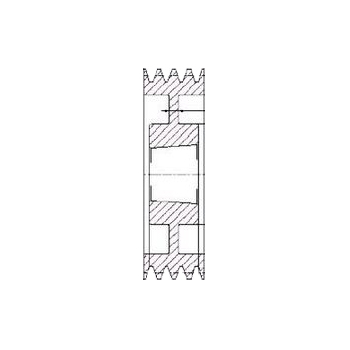

SPZ 4 Groove V Pulleys taper bore for use with our taper bushes.
Spz280/4 V Pulley For 2517 T/L Bush (SPZ280/4)
Spz280/4 V Pulley For 2517 T/L Bush (SPZ280/4)
Part No. | 7804-716 |
Type | SPZ280/4 |
Diameter P (mm) | 280 |
Diameter O (mm) | 284 |
Style | 6 |
Bush | 2517 |
Bore ø max. | 60 |
E | 14 |
J | 251 |
K | 3.5 |
L | 45 |
M | 3.5 |
N | 124 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
