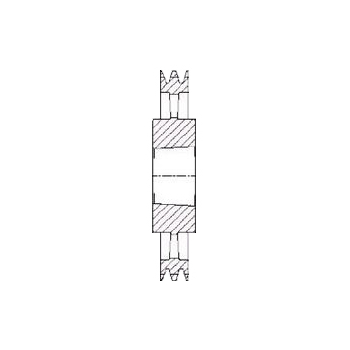

SPZ 3 Groove V Pulleys taper bore for use with our taper bushes.
Spz280/3 V Pulley For 2517 T/L Bush (SPZ280/3)
Spz280/3 V Pulley For 2517 T/L Bush (SPZ280/3)
| Part No. | 7804-680 |
| Type | SPZ280/3 |
| Diameter P (mm) | 280 |
| Diameter O (mm) | 284 |
| Style | 4 |
| Bush | 2517 |
| Bore ø max. | 60 |
| E | |
| J | 251 |
| K | 2.5 |
| L | 45 |
| M | 2.5 |
| N | 124 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
