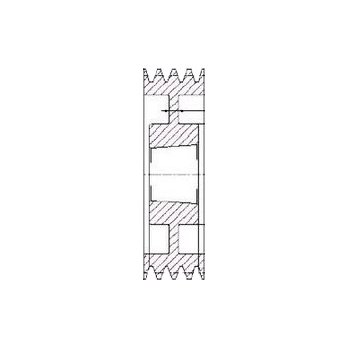

SPZ 6 Groove V Pulleys taper bore for use with our taper bushes.
Spz224/6 V Pulley For 2517 T/L Bush (SPZ224/6)
Spz224/6 V Pulley For 2517 T/L Bush (SPZ224/6)
| Part No. | 7804-767 |
| Type | SPZ224/6 |
| Diameter P (mm) | 224 |
| Diameter O (mm) | 228 |
| Style | 6 |
| Bush | 2517 |
| Bore ø max. | 60 |
| E | 26 |
| J | 195 |
| K | 15.5 |
| L | 45 |
| M | 15.5 |
| N | 124 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
