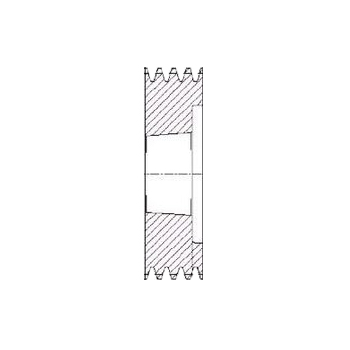

SPZ 4 Groove V Pulleys taper bore for use with our taper bushes.
Spz170/4 V Pulley For 2517 T/L Bush (SPZ170/4)
Spz170/4 V Pulley For 2517 T/L Bush (SPZ170/4)
Part No. | 7804-710 |
Type | SPZ170/4 |
Diameter P (mm) | 170 |
Diameter O (mm) | 174 |
Style | 2 |
Bush | 2517 |
Bore ø max. | 60 |
E | |
J | 141 |
K | |
L | 45 |
M | 7 |
N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
