SPZ 6 Groove V Pulleys taper bore for use with our taper bushes.
Spz150/6 V Pulley For 2517 T/L Bush (SPZ150/6)
Spz150/6 V Pulley For 2517 T/L Bush (SPZ150/6)
Part No. | 7804-761 |
Type | SPZ150/6 |
Diameter P (mm) | 150 |
Diameter O (mm) | 154 |

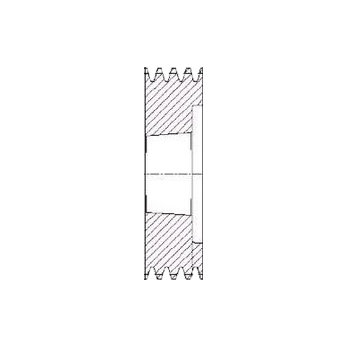

Style | 2 |
Bush | 2517 |
Bore ø max. | 60 |
E | |
J | 121 |
K | |
L | 45 |
M | 31 |
N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
