SPZ 6 Groove V Pulleys taper bore for use with our taper bushes.
Spz118/6 V Pulley Fpr 2517 T/L Bush (SPZ118/6)
Spz118/6 V Pulley Fpr 2517 T/L Bush (SPZ118/6)
| Part No. | 7804-757 |
| Type | SPZ118/6 |
| Diameter P (mm) | 118 |
| Diameter O (mm) | 122 |

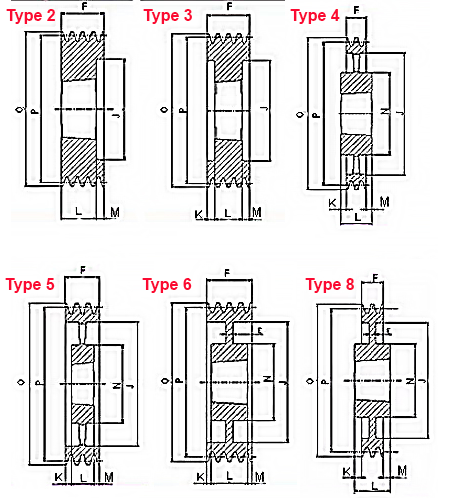

| Style | 8 |
| Bush | 2517 |
| Bore ø max. | 60 |
| E | |
| J | 90 |
| K | 31 |
| L | 45 |
| M | |
| N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
