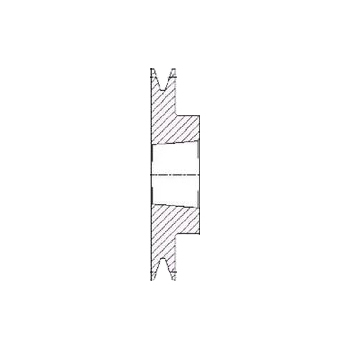

SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.
Spz118/1 V Pulley For 1610 T/L Bush (SPZ118/1)
Spz118/1 V Pulley For 1610 T/L Bush (SPZ118/1)
| Part No. | 7804-604 |
| Type | SPZ118/1 |
| Diameter P (mm) | 118 |
| Diameter O (mm) | 122 |
| Style | 1 |
| Bush | 1610 |
| Bore ø max. | 42 |
| E | |
| J | |
| K | |
| L | 25 |
| M | 9 |
| N | 92 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
