SPC 4 Groove V Pulleys taper bore for use with our taper bushes.
SPC224/4 V Pulley For 3535 T/L Bush (SPC224/4)
SPC224/4 V Pulley For 3535 T/L Bush (SPC224/4)
| Part No. | 7804-503 |
| Type | SPC224/4 |
| Diameter P (mm) | 224 |
| Diameter O (mm) | 233.6 |

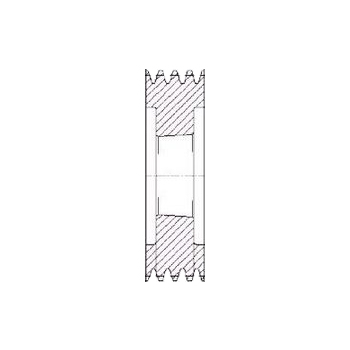

| Style | 3 |
| Bush | 3535 |
| Bore ø max. | 90 |
| E | |
| J | 168 |
| K | 11 |
| L | 89 |
| M | 11 |
| N | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
