SPB 10 Groove V Pulleys taper bore for use with our taper bushes.

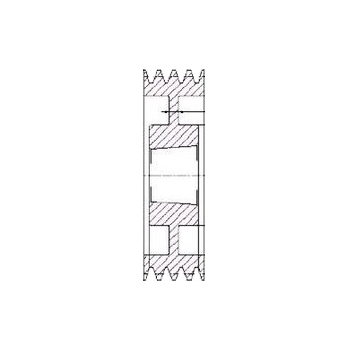

SPB355/10 V Pulley For 4040 T/L Bush (SPB355/10)
SPB355/10 V Pulley For 4040 T/L Bush (SPB355/10)
| Part No. | 7804-252 |
| Type | SPB355/10 |
| Diameter P (mm) | 355 |
| Diameter O (mm) | 362 |

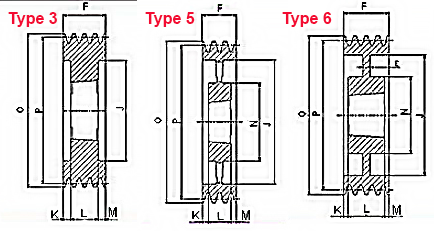

| Style | 6 |
| Bush | 4040 |
| Bore ø max. | 100 |
| E | 30 |
| J | 312 |
| K | 47 |
| L | 102 |
| M | 47 |
| N | 210 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
