SPB 10 Groove V Pulleys taper bore for use with our taper bushes.

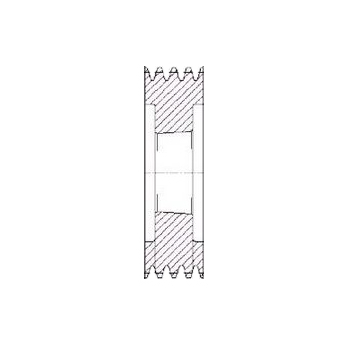

SPB224/10 V Pulley For 3535 T/L Bush (SPB224/10)
SPB224/10 V Pulley For 3535 T/L Bush (SPB224/10)
| Part No. | 7804-246 |
| Type | SPB224/10 |
| Diameter P (mm) | 224 |
| Diameter O (mm) | 231 |
| Style | 3 |
| Bush | 3535 |
| Bore ø max. | 90 |
| E | |
| J | 181 |
| K | 53.5 |
| L | 89 |
| M | 53.5 |
| N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
