SPB 6 Groove V Pulleys taper bore for use with our taper bushes.
SPB200/6 V Pulley For 3020 T/L Bush (SPB200/6)
SPB200/6 V Pulley For 3020 T/L Bush (SPB200/6)
Part No. | 7804-407 |
Type | SPB200/6 |
Diameter P (mm) | 200 |
Diameter O (mm) | 207 |

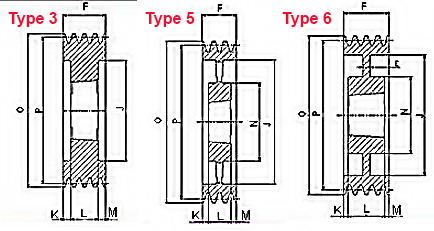

Style | 3 |
Bush | 3020 |
Bore ø max. | 75 |
E | |
J | 157 |
K | 34.5 |
L | 51 |
M | 34.5 |
N | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
