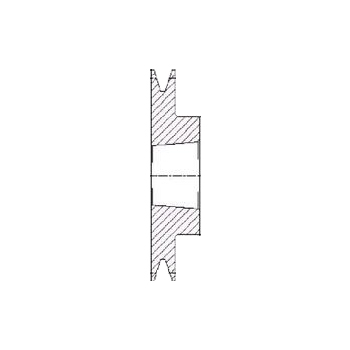

SPB 1 Groove V Pulleys taper bore for use with our taper bushes.
SPB112/1 V Pulley For 1610 T/L Bush (SPB112/1)
SPB112/1 V Pulley For 1610 T/L Bush (SPB112/1)
| Part No. | 7804-228 |
| Type | SPB112/1 |
| Diameter P (mm) | 112 |
| Diameter O (mm) | 119 |

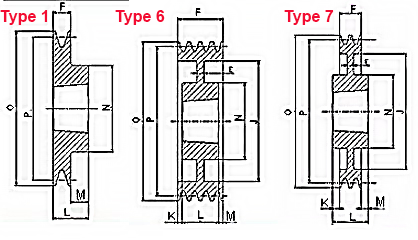

| Style | 1 |
| Bush | 1610 |
| Bore ø max. | 42 |
| E | |
| J | |
| K | |
| L | 25 |
| M | |
| N | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
