SPA 1 Groove V Pulleys taper bore for use with our taper bushes.
SPA85/1 V Pulley For 1210 T/L Bush (SPA85/1)
SPA85/1 V Pulley For 1210 T/L Bush (SPA85/1)
Part No. | 7804-031 |
Type | SPA85/1 |
Diameter P (mm) | 85 |
Diameter O (mm) | 90.5 |

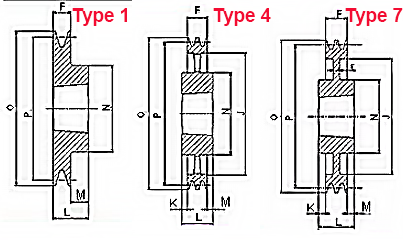

Style | 1 |
Bush | 1210 |
Bore ø max. | 32 |
E | |
J | |
K | |
L | 25 |
M | 5 |
N | 80 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
