SPA 5 Groove V Pulleys taper bore for use with our taper bushes.

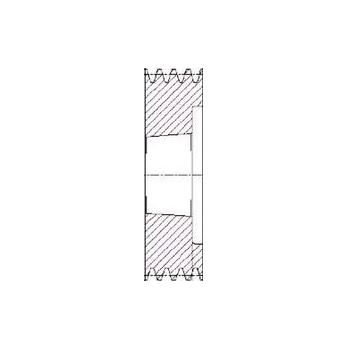

SPA212/5 V Pulley For 3020 T/L Bush (SPA212/5)
SPA212/5 V Pulley For 3020 T/L Bush (SPA212/5)
| Part No. | 7804-176 |
| Type | SPA212/5 |
| Diameter P (mm) | 212 |
| Diameter O (mm) | 217.5 |

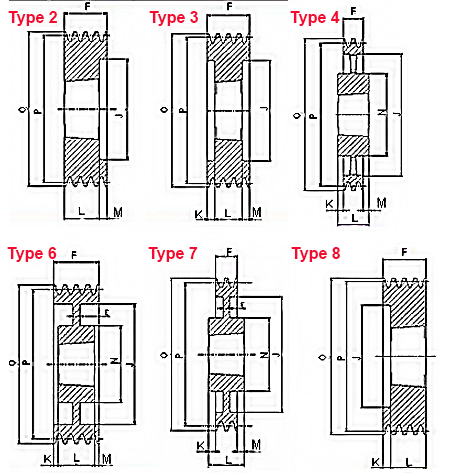

| Style | 2 |
| Bush | 3020 |
| Bore ø max. | 75 |
| E | |
| J | 177 |
| K | |
| L | 51 |
| M | 29 |
| N | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
