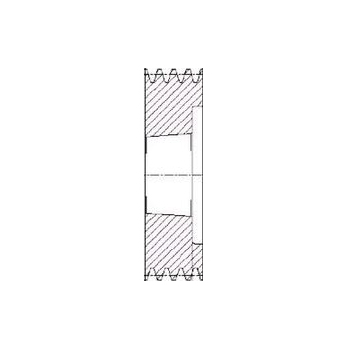

SPA 4 Groove V Pulleys taper bore for use with our taper bushes.
SPA140/4 V Pulley For 2517 T/L Bush (SPA140/4)
SPA140/4 V Pulley For 2517 T/L Bush (SPA140/4)
| Part No. | 7804-140 |
| Type | SPA140/4 |
| Diameter P (mm) | 140 |
| Diameter O (mm) | 145.5 |

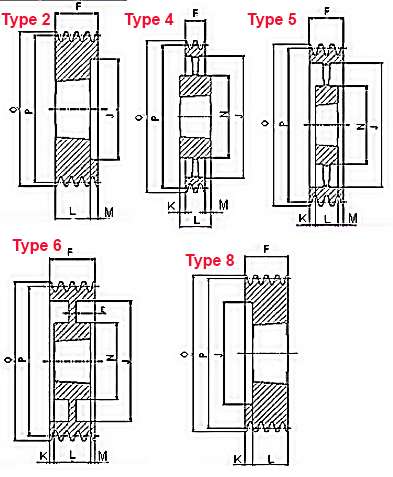

| Style | 2 |
| Bush | 2517 |
| Bore ø max. | 60 |
| E | |
| J | 106 |
| K | |
| L | 45 |
| M | 20 |
| N | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
