SPA 3 Groove V Pulleys taper bore for use with our taper bushes.

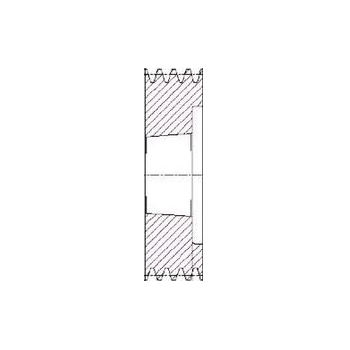

SPA100/3 V Pulley For 1610 T/L Bush (SPA100/3)
SPA100/3 V Pulley For 1610 T/L Bush (SPA100/3)
Part No. | 7804-101 |
Type | SPA100/3 |
Diameter P (mm) | 100 |
Diameter O (mm) | 105.5 |

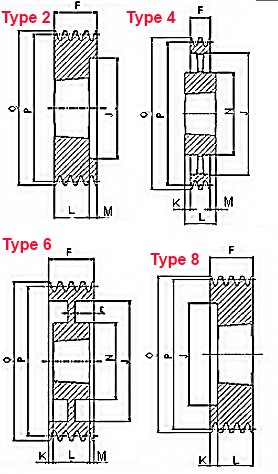

Style | 2 |
Bush | 1610 |
Bore ø max. | 42 |
E | |
J | 66 |
K | |
L | 25 |
M | 25 |
N | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
