Stainless Steel single split Shaft Collars in Metric Bore. Type CASB in Stainless Steel 304, supplied with setscrew(s).
S/S Collar 10x24x9mm Single Split (CASB10ST)
S/S Collar 10x24x9mm Single Split (CASB10ST)

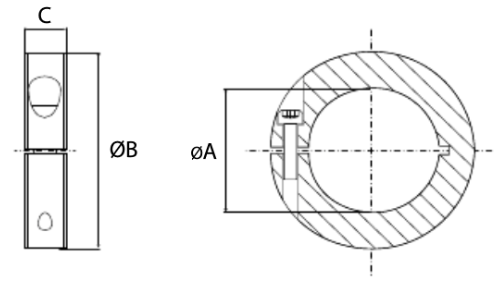

| Part No. | 7932-203 |
| Code | CASB10ST |
| Bore A(mm) | 10 |
| Diameter B (mm) | 24 |
| Width C (mm) | 9 |
| Clamp Bolt | M3X10 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
