Timing Pulleys L100 (0.375" / 9.525mm pitch) for 25.4mm (1") wide belt. Pilot bore, manufactured in steel or Cast Iron with steel flanges.
Pulley 96L100, With Pilot Bore (P96L100)
Pulley 96L100, With Pilot Bore (P96L100)
| Part No. | 7801-090 |
| Code | P96L100 |
| Material | Cast Iron |

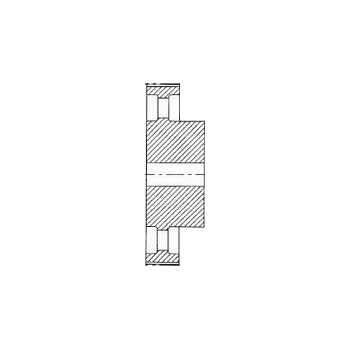

| Type | 4 |
| No. Teeth | 96 |
| Dp | 291 |
| De | 290 |
| Df | |
| Dm | 75 |
| F | 31.8 |
| L | 45 |
| Bore | 14 |
| No. Flanges | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
