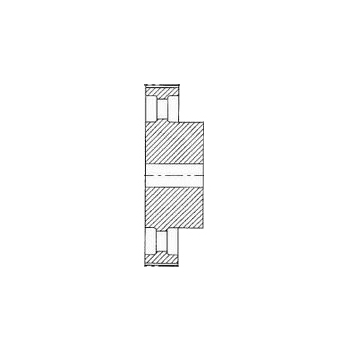

Timing Pulleys H200 (0.5" / 12.7mm pitch) for 50.8mm (2") wide belt. Centre drilled or Pilot Bore in Steel or Cast Iron with steel flanges.
Pulley 72H200, With Pilot Bore (P72H200)
Pulley 72H200, With Pilot Bore (P72H200)
| Part No. | 7800-819 |
| Code | P72H200 |
| Material | Cast Iron |
| Type | 4 |
| No. Teeth | 72 |
| Dp | 291.06 |
| De | 289.69 |
| Df | |
| Dm | 120 |
| F | 58.7 |
| L | 75 |
| d | 28 |
| No. flanges | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
