Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.

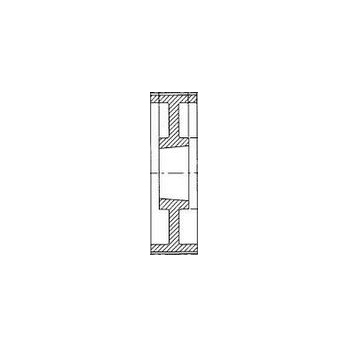

Pulley 60L100/9W For 1610 T/L Bush (T60L100)
Pulley 60L100/9W For 1610 T/L Bush (T60L100)
| Part No. | 7801-152 |
| Code | T60L100 |
| Material | Steel |
| Type | 11 |
| No. Teeth | 1610 |
| Bush | 60 |
| Dp | 182 |
| De | 181 |
| Df | |
| Dm | 92 |
| Di | 166 |
| F | 32 |
| S | 25 |
| R | 3.5 |
| No. flanges | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
