Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Centre drilled or Pilot Bore in Steel or Cast Iron with steel flanges.

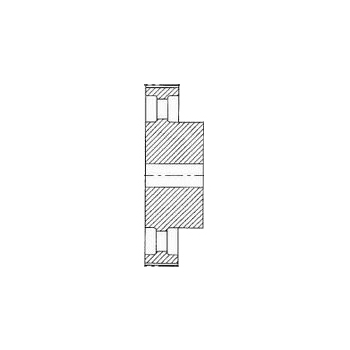

Pulley 60H100, With Pilot Bore (P60H100)
Pulley 60H100, With Pilot Bore (P60H100)
Part No. | 7800-813 |
Code | P60H100 |
Material | Cast Ironl |
Type | 4 |
No. Teeth | 60 |
Dp | 242.55 |
De | 241.18 |
Df | |
Dm | 120 |
F | 31.8 |
L | 50 |
d | 19 |
No. flanges | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
